When it comes to precision control in automation, robotics, and electronics, stepper motors stand out as one of the most reliable options. From 3D printers to CNC machines, these motors power countless applications where accuracy, repeatability, and control are essential. However, choosing the right stepper motor for your project can be challenging if you are not familiar with their specifications, types, and applications.
This guide will help you understand stepper motors in detail and give you practical steps to select the perfect one for your project.
What Are Stepper Motors?

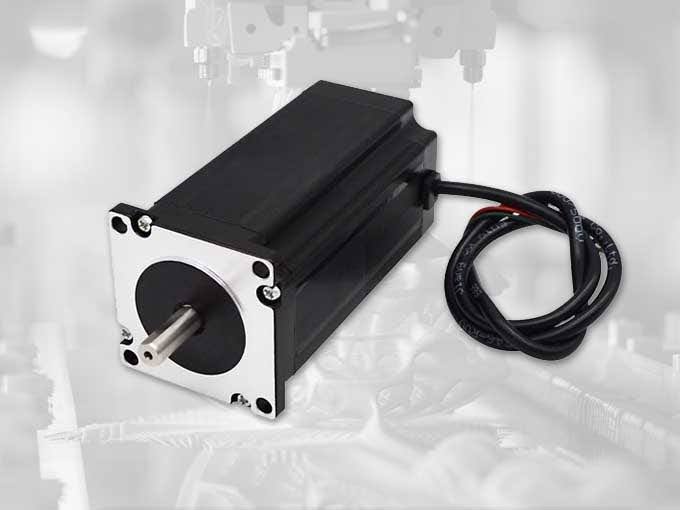

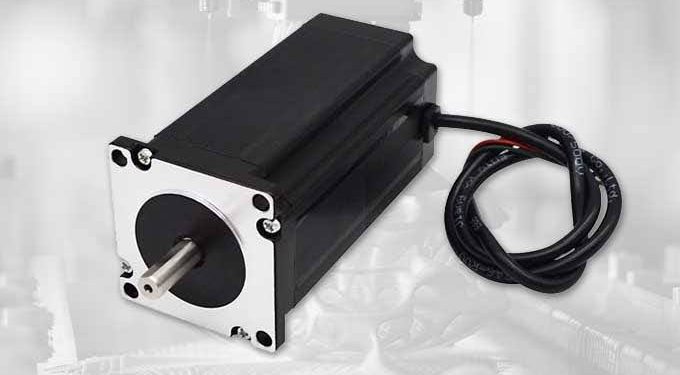

A stepper motor is an electromechanical device that converts electrical pulses into precise mechanical movement. Unlike traditional DC motors, which rotate continuously when powered, stepper motors rotate in fixed steps. Each pulse moves the shaft by a specific angle, giving you exact control over speed, position, and direction.
Because of this precise control, stepper motors are widely used in:
- Robotics
- CNC machines
- 3D printers
- Medical devices
- Camera platforms
- Automated machinery
Types of Stepper Motors
Before choosing the right stepper motor, it’s important to understand the different types available:
1. Permanent Magnet (PM) Stepper Motors
These motors use a permanent magnet rotor and are ideal for low-speed applications. They are simple, cost-effective, and commonly used in small devices like printers and toys.
2. Variable Reluctance (VR) Stepper Motors
VR stepper motors have a soft iron rotor and no permanent magnets. They are inexpensive but offer lower torque compared to other types.
3. Hybrid Stepper Motors
Hybrid motors combine the best features of PM and VR designs. They offer high torque, excellent precision, and are the most widely used type of stepper motor in industrial applications.
Key Factors to Consider When Choosing Stepper Motors
Selecting the right motor depends on several factors. Here are the most important considerations:
1. Torque Requirements
One of the first things to determine is the torque you need. Stepper motors are available in various torque ratings, usually measured in Newton-meters (Nm) or ounce-inches (oz-in). If your application involves heavy loads, such as CNC milling, you’ll need a higher torque motor. For lightweight applications like camera sliders, a low-torque motor may be sufficient.
2. Step Angle and Resolution
The step angle defines how much the motor shaft rotates per pulse. Common step angles are 1.8° (200 steps per revolution) or 0.9° (400 steps per revolution). Smaller step angles mean higher precision and smoother motion. For applications requiring very fine movement, like 3D printing, a motor with a small step angle is ideal.
3. Speed and Acceleration
While stepper motors excel at precision, they are not designed for very high speeds. Determine the speed range of your project before selecting a motor. High-speed applications may require a balance between torque and acceleration capability.
4. Voltage and Current Ratings
Each stepper motor has specific voltage and current requirements. Make sure the motor matches your driver and power supply. Using the wrong voltage or current can result in overheating, poor performance, or even permanent damage.
5. Size and Mounting
Stepper motors come in standardized sizes known as NEMA (National Electrical Manufacturers Association) frames, such as NEMA 17, NEMA 23, and NEMA 34. For example:
- NEMA 17: Common in 3D printers and small robotics.
- NEMA 23: Suitable for CNC routers and medium-duty machines.
- NEMA 34: Best for heavy-duty industrial applications.
Make sure the motor you choose fits the physical constraints of your project.
6. Driver Compatibility
A stepper motor requires a driver to control the pulses. Ensure the driver you select is compatible with your motor’s voltage, current, and microstepping capabilities. Microstepping allows smoother movement by dividing full steps into smaller increments.
7. Environmental Conditions
Consider where the motor will operate. High humidity, dust, or extreme temperatures can affect performance. In harsh environments, you may need a motor with protective sealing or additional cooling mechanisms.
Applications of Stepper Motors
Understanding common applications can help you choose the right motor:
- 3D Printers – Often use NEMA 17 stepper motors for high precision and compact design.
- CNC Machines – Typically rely on NEMA 23 stepper motors or NEMA 34 motors for higher torque.
- Robotics – Lightweight stepper motors are preferred for robotic arms and mobile robots.
- Medical Equipment – Used for pumps, scanners, and positioning systems requiring precision.
- Camera Systems – Small stepper motors enable smooth panning and tilting for photography.
Tips for Selecting the Perfect Stepper Motor
- Start with your application needs – Define torque, speed, and accuracy requirements.
- Check compatibility with your driver and power supply – Ensure proper voltage and current ratings.
- Consider future scalability – If you plan to upgrade your project, choose a motor with extra torque capacity.
- Test before finalizing – Prototyping helps confirm if the selected stepper motor meets expectations.
Common Mistakes to Avoid
- Underrating torque needs – Choosing a smaller motor than required can cause skipped steps and poor performance.
- Ignoring driver compatibility – A mismatch between driver and motor can reduce efficiency.
- Overlooking environmental factors – Dust, heat, or vibration can damage stepper motors if not considered.
- Focusing only on price – While budget is important, reliability and long-term performance should come first.
The Future of Stepper Motors
With the rise of automation, smart manufacturing, and robotics, stepper motors are becoming more advanced. Features like closed-loop control (combining stepper motors with encoders) are making them more efficient and reliable. This trend ensures that stepper motors will remain essential components in future technologies.
Conclusion
Choosing the right stepper motor requires understanding your project’s torque, speed, accuracy, and environmental conditions. By carefully evaluating specifications and application needs, you can select a motor that ensures reliable performance and long-term efficiency.
Whether you are building a 3D printer, a CNC router, or a robotic system, the right stepper motor can make all the difference between a project that struggles and one that succeeds.
